A TRUSTED CRUISING COMPANION

Easy planning and GPS navigation with your favorite charts.

• Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
• Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
• Built-in High CHIRP sonar for depth and bottom contour imaging
• Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
• Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF

SIMPE AND STRAIGHT FORWARD

Element’s LightHouse Sport OS Designed for boaters that like to keep things simple.

• From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating
• An oversized waypoint key for quick and easy marking of your favorite locations
• Three user-programmable quick keys to access your favorite pages with one button push
• Live menus let you customize charts while seeing the navigation display change in real time

SUPERIOR PERFORMANCE

Enjoy legendary Raymarine display and navigation technology at an affordable price.

• 7, 9, and 12 inch super bright display for all weather conditions
• Category-leading quad-core processor delivers fast chart redraw and responsive performance
• Fast and accurate 10hz GPS/GNSS sensor
• Rugged design and backed by Raymarine’s three-year warranty (product registration required)

High CHIRP Transducers

Compatible with the CPT-S family of transom and thru-hull transducers.

Connections

• Power
• NMEA2000 integration with AIS, autopilot, sailing instruments, engines, tanks sensors, and VHF
• Wi-Fi connection to Quantum radar

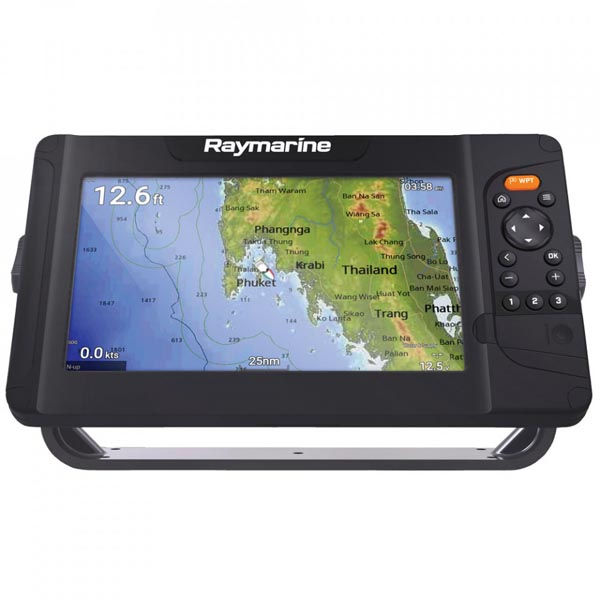

Element 7/9/12 S

GENERAL SPECIFICATIONS

Display Size	7.0" Optically Bonded LCD	9.0" Optically Bonded LCD	12.0" Optically Bonded LCD
Display Resolution	800 x 480 WVGA	1280 x 800 WXGA
Display Type	Non-Touch
Brightness	1,500 nits



PHYSICAL

Overall Dimensions W x H x D (mm)	240 x 135 62mm (9.5 x 5.3 x 2.4 inches)	287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches)	357 x 215 x 62mm (14.1 x 8.5 x 2.4 inches)
Product Weight (lbs)	3.0	5.0	6.5
Water Ingress Protection	IPx6 and IPx7
Operating Temperature Range	-25°C to + 55°C (-13°F to 131°F)
Storage temperature range	-30°C to +70°C (-22°F to 158°F)



Voltage	12V DC (8V to 16V DC)
Power Consumption (max 12V DC)	15 Watts	20 Watts	25 Watts

SENSORS

GNSS / GPS	Built-in GPS/GLONASS
Sonar Type (Built-in)	Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Sonar Depth	CHIRP Sonar = 274m (900 feet)
Radar	Quantum wireless CHIRP compatible Wi-Fi only connection
Doppler Radar	N/A
MARPA	N/A



NMEA2000	1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking	INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization) OUTPUT: GPS (for VHF Distress and DSC). Waypoint, Routes, and XTE for Autopilot. Waypoint and Route sharing between Element displays
SeaTalkng	Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi	WiFi - 802.11 b / g / n

OTHER SPECIFICATIONS

Cartography	Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents	Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping	Raymarine RealBathy and Navionics SonarChart Live
Waypoint / Routes / Tracks	5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
External Memory	1 x microSD slots
