AXIOM
TOUCH SCREEN MULTIFUNCTION NAVIGATION DISPLAYS
A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.

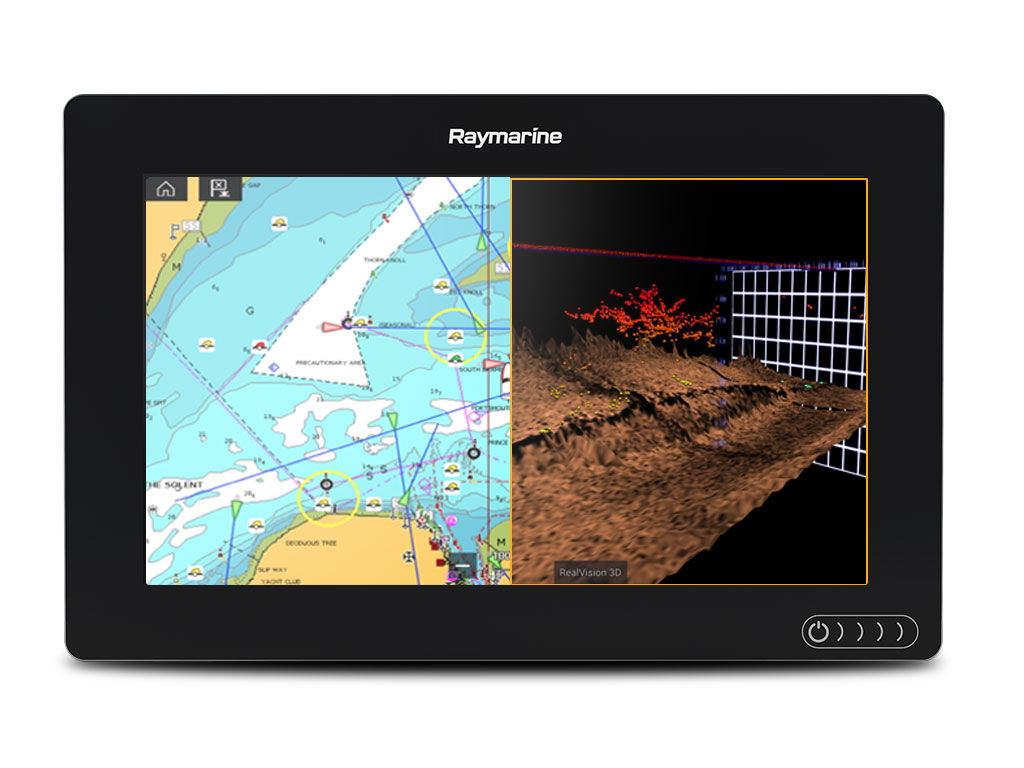

7/9/12" TOUCH SCREEN MULTIFUNCTION DISPLAY AXIOM
Available,Διαθέσιμο! 7/9
BLAZING FAST PERFORMANCE AND POWER
AT YOUR FINGER TIPSAxiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface is easily personalized for your style of navigating.
Rugged all-glass display optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.
SIMPLY SUPERIOR SONAR
Gyro-Stabilized Sonar Technology
Gyro stabilization compensates for boat movement, delivering life-like 3D sonar imagery.
All-in-One Transducers
RealVision 3D Transducers combine CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a single transducer housing.
STAY SAFE WITH FLIR THERMAL AND RADAR
Uncluttered Radar
New radar modes simplify operation along with quick access to sensitivity controls and enhanced status and range displays.
LightHouse Live View Menu™
Lets you see radar adjustments in real time.
Enhanced Thermal Awareness
Exclusive FLIR ClearCruise™ thermal video analytics technology actively monitors the scene and provide alerts when any non-water objects enter the camera’s field of view.
GENERAL SPECIFICATIONS DISPLAY Display Size 12.1" IPS Optically Bonded LCD Display Resolution 1280 x 800 WXGA (HD) IPS Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) PHYSICAL Dimensions 314 x 217 x 77mm (12.36" x 8.54" x 3.00") Weight 2.84kg (6.25lbs) Mounting Top, Flush, Front, Bracket Waterproof Rating IPX6 / IPX7 Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F) Storage Temp -30deg C to +70deg C (- 22deg F to 158deg F) POWER Voltage 12V DC (8 V to 16 VDC) Power Consumption (Max @ 12V DC) Chartplotter - 15.48 Watts | RV - 18.96 Watts
Note: Power consumption figures for DV variants were taken using a CPT-100DVS transducer and RV variants using an RV-100 transducer.SENSORS & PERIPHERALS SPECIFICATIONS SENSORS GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310) Sonar Type (Built-in) RV model - Built-in RealVision™ 3D + 600W Sonar Connection RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W)
See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W
External sonar - RayNetSonar Depth CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet)
SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet)External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - NMEA2000 Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP camera input only Video / Camera Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)
[Weather features available in future Lighthouse 3 software update]
Find out more about our weather optionsAudio Integration NMEA2000 / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]Digital Switching Yes - Empirbus Remote Control *RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]NETWORKING SPECIFICATIONS NETWORKING Ethernet 1 x 10/100 Mbits/ Network (RayNet) NMEA0183 Requires suitable adaptor to NMEA2000 network NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires A06045 DeviceNet female (F) adapter cable - 400mm USB 1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440)) Wi-Fi WiFi - 802.11 b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5
[Available in future Lighthouse 3 software update]OTHER SPECIFICATIONS NAVIGATION Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]
Find out more about our cartography optionsTides & Currents Requires Navionics or *C-MAP Waypoint / Routes / Tracks 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 4GB Solid State External 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) OTHER Languages 14 Conformances NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 The above specifications apply to all Axiom models
GENERAL SPECIFICATIONS DISPLAY Display Size 9.0" Optically Bonded LCD Display Resolution 800 x 480 WVGA Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right) PHYSICAL Dimensions 244 x 158 x 77mm (9.65" x 6.22" x 3.00") Weight 2.04kg (4.5lbs) Mounting Top, Flush, Front, Bracket Waterproof Rating IPX6 / IPX7 Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F) Storage Temp -30deg C to +70deg C (- 22deg F to 158deg F) POWER Voltage 12V DC (8 V to 16 VDC) Power Consumption (Max @ 12V DC) Chartplotter - 8.95 Watts | RV - 11.98 Watts
Note: Power consumption figures for DV variants were taken using a CPT-100DVS transducer and RV variants using an RV-100 transducer.SENSORS & PERIPHERALS SPECIFICATIONS SENSORS GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310) Sonar Type (Built-in) RV model - Built-in RealVision™ 3D + 600W Sonar Connection RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W)
See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W
External sonar - RayNetSonar Depth CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet)
SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet)External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - NMEA2000 Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP camera input only Video / Camera Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)
[Weather features available in future Lighthouse 3 software update]
Find out more about our weather optionsAudio Integration NMEA2000 / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]Digital Switching Yes - Empirbus Remote Control *RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]NETWORKING SPECIFICATIONS NETWORKING Ethernet 1 x 10/100 Mbits/ Network (RayNet) NMEA0183 Requires suitable adaptor to NMEA2000 network NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires A06045 DeviceNet female (F) adapter cable - 400mm USB 1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5
[Available in future Lighthouse 3 software update]OTHER SPECIFICATIONS NAVIGATION Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]
Find out more about our cartography optionsTides & Currents Requires Navionics or *C-MAP Waypoint / Routes / Tracks 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 4GB Solid State External 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) OTHER Languages 14 Conformances NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 GENERAL SPECIFICATIONS DISPLAY Display Size 7.0" Optically Bonded LCD Display Resolution 800 x 480 WVGA Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right) PHYSICAL Dimensions 210 x 142 x 77mm (7.92" x 5.24" x 3.00") Weight 1.52kg (3.35lbs) Mounting Top, Flush, Front, Bracket Waterproof Rating IPX6 / IPX7 Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F) Storage Temp -30deg C to +70deg C (- 22deg F to 158deg F) POWER Voltage 12V DC (8 V to 16 VDC) Power Consumption (Max @ 12V DC) Chartplotter - 7.34 Watts | DV - 10.02 Watts | RV - 9.84 Watts
Note: Power consumption figures for DV variants were taken using a CPT-100DVS transducer and RV variants using an RV-100 transducer.SENSORS & PERIPHERALS SPECIFICATIONS SENSORS GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310) Sonar Type (Built-in) DV model - Built-in DownVision™ + 600W | RV model - Built-in RealVision™ 3D + 600W Sonar Connection DV variant = 9 pin DownVision™ type connector
RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W)
See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W
External sonar - RayNetSonar Depth CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet)
SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet)External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - NMEA2000 Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP camera input only Video / Camera Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)
[Weather features available in future Lighthouse 3 software update]
Find out more about our weather optionsAudio Integration NMEA2000 / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]Digital Switching Yes - Empirbus Remote Control *RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]NETWORKING SPECIFICATIONS NETWORKING Ethernet 1 x 10/100 Mbits/ Network (RayNet) NMEA0183 Requires suitable adaptor to NMEA2000 network NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires A06045 DeviceNet female (F) adapter cable - 400mm USB 1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440)) Wi-Fi WiFi - 802.11 b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 OTHER SPECIFICATIONS NAVIGATION Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]
Find out more about our cartography optionsTides & Currents Requires Navionics or *C-MAP Waypoint / Routes / Tracks 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 4GB Solid State External 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) OTHER Languages 14 Conformances NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 IN THE BOX 1 1. MFD 2 Trunnion bracket 3 Trunnion knobs x 2 4 Suncover 5 Panel mount gasket for surface/flush mounting 6a | 6b Rear mounting brackets: a. supplied with 9” MFD | b. supplied with 12” MFD 7 Documentation pack 8 Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead) 9 M5x58 Threaded studs x 4 10 M5 Thumb nuts x 4 IN THE BOX11. MFD (supplied with Trunnion adaptor fitted)2Trunnion bracket3Trunnion knobs x 24Suncover — Trunnion mount5Panel mount gasket for surface/flush mounting6M5x58 Threaded studs x 47M5 Thumb nuts x 48Documentation pack9Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
