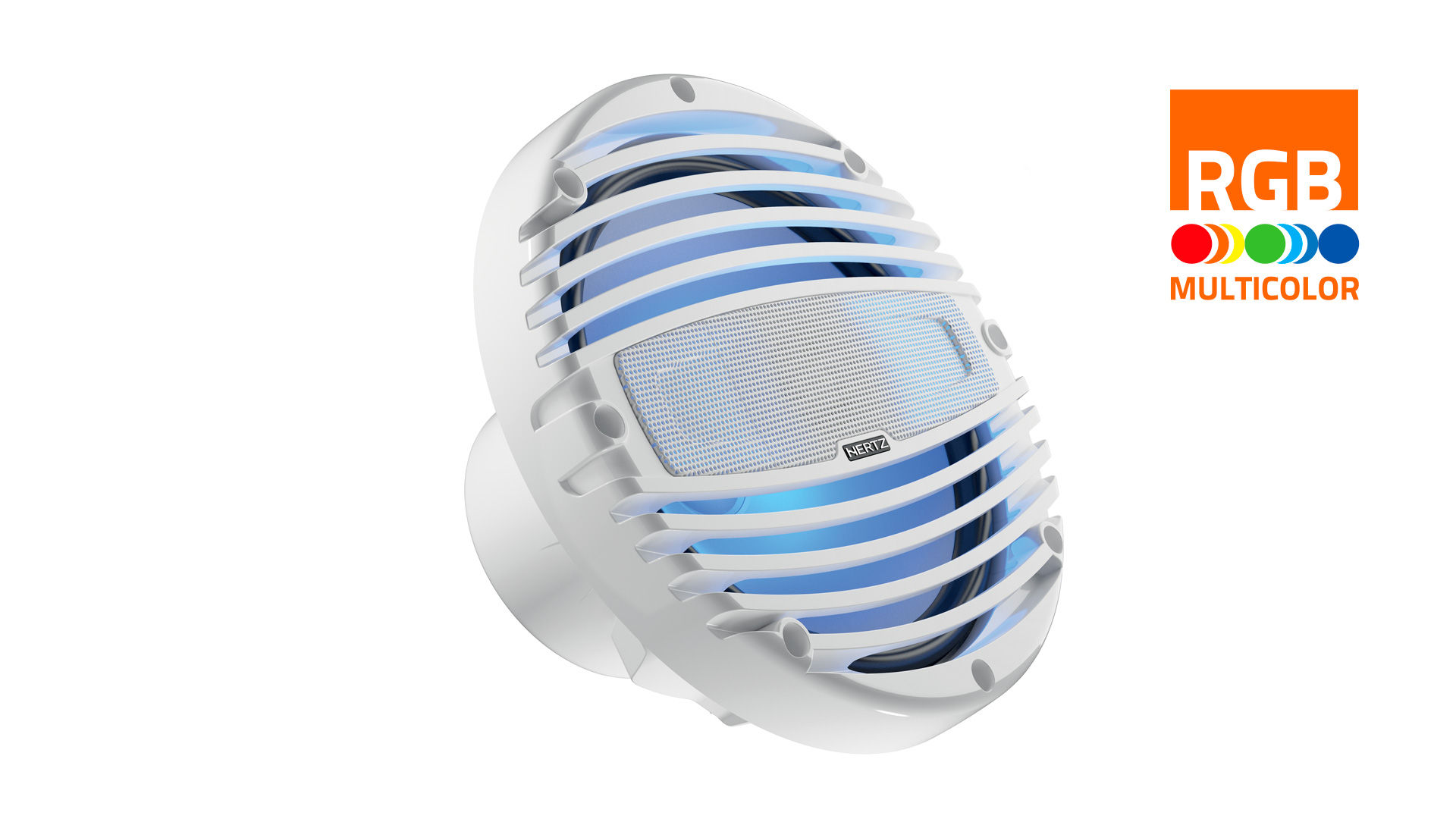

HMX 8 LD-TW hi-performance marine coaxial speakers with RGB LEDs lighting option, also available in the black option HMX 8 LD-TC, feature a tone-on-tone front mesh matching the grille colour. The tweeter acoustic lens optimizes off-axis dispersion and maximized SPL.
The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
A225 mm8.86 in.B180 mm7.09 in.
C123 mm4.84 in
D91 mm3.58 in.
F32 mm1.26 in.
HMX 8 LD-TW / TC
Component HI-END LED COAX Size mm (in.) 200 (8) Power Handling - Continuous W 100 Power Handling - Peak W 200 Impedance Ohm 4 Depth mm (in.) 123 (4.84) Tweeter diaphragm mm (in.) 36 (1.4) Woofer Voice Coil Ø mm (in.) 32 (1.26) Tweeter Voice Coil Ø mm (in.) 20 (0.8) Frequency Response Hz 45 ÷ 25k Woofer Magnet size D x d x h mm (in.) 90 x 40 x 20 (3.54 x 1.57 x 0.79) Tweeter Magnet size D x h mm (in.) 19,7 x 3 (0.78 x 0.12) Weight of one speaker kg (lb.) 1,66 (3.66) Woofer Magnet High density flux ferrite Tweeter Magnet Neodymium Cone Polypropylene with UV inhibitors Dome PEI Xmech mm (in.) ±8,5 (0.33) D mm 174 Re Ohm 3,1 Fs Hz 50 Le mH 0,52 Vas I 29,46 Mms g 27,3 Cms mm/N 0,37 BL T*m 6,6 Qts 0,58 Qes 0,61 Qms 11 Spl dB 91
